Overview

Convert To is a feature that lets you change a Collection control type, while keeping the properties and parameters of the original one. The available Collection controls you can convert are: Card Link, Small Card and List Collection.



How to use the Convert To feature

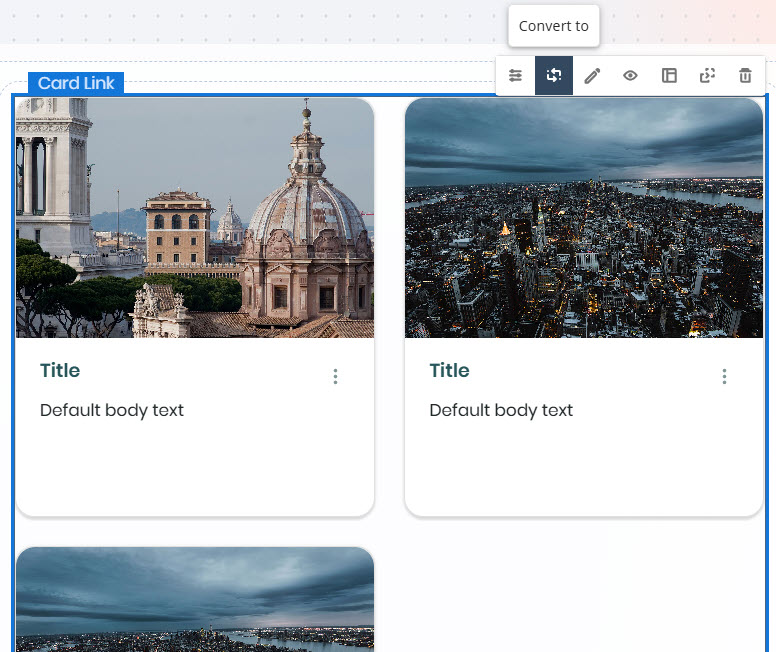

To access the Convert To feature, click the Collection control in your page to display the configuration options. In this menu, select the option Convert To.



Convert_To_1

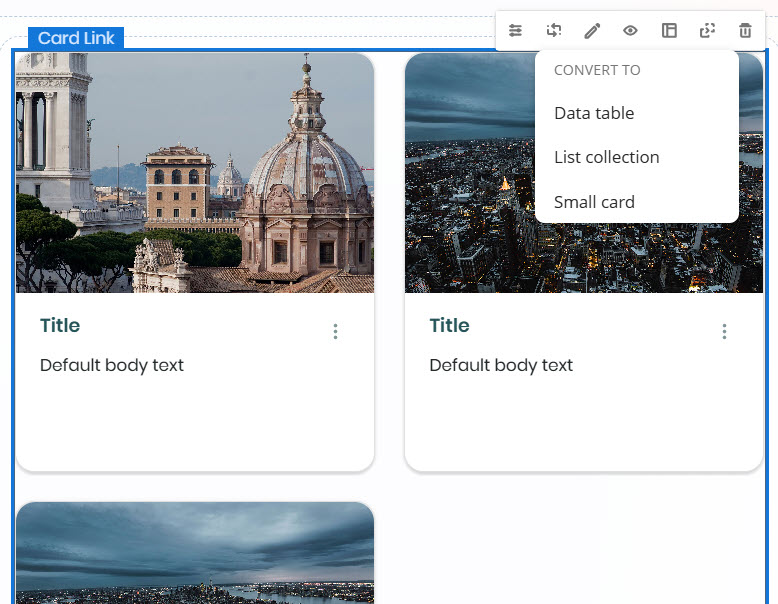

When you click this option, the other Collection controls are displayed in a drop-down list. Select the Collection control to which you want to convert the current control.



Convert_To_2

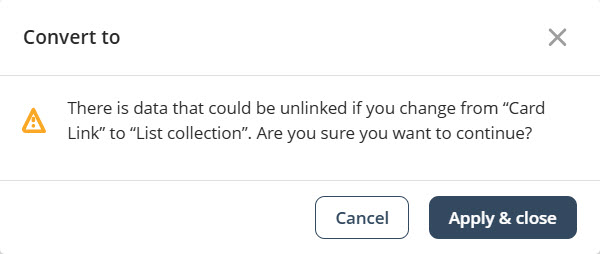

Then a warning message appears. This is because some elements could be unlinked, which means that it is not shown in the converted collection control, given its structure. For example, it is possible that when you convert a Card Link to a List Collection, the images are not displayed.



Click the Apply & close button to apply the changes.



Convert_To_3



note_pin

Bear in mind that when you convert a Collection control, and an element is not shown it is not because it is deleted. It is just hidden. The element will be shown when you convert the Collection control to one that has the structure to show that element.



Bizagi automatically converts the control, keeping the properties and parameters from the original control.



Convert_To_4



Convert_To_5



note_pin

Bear in mind that parameters are kept for both static and dynamic content.
