Overview
In the Side menu of the App Designer home page you can find the App Launcher section. Here you can access the App Launcher or edit some interface options to customize it.

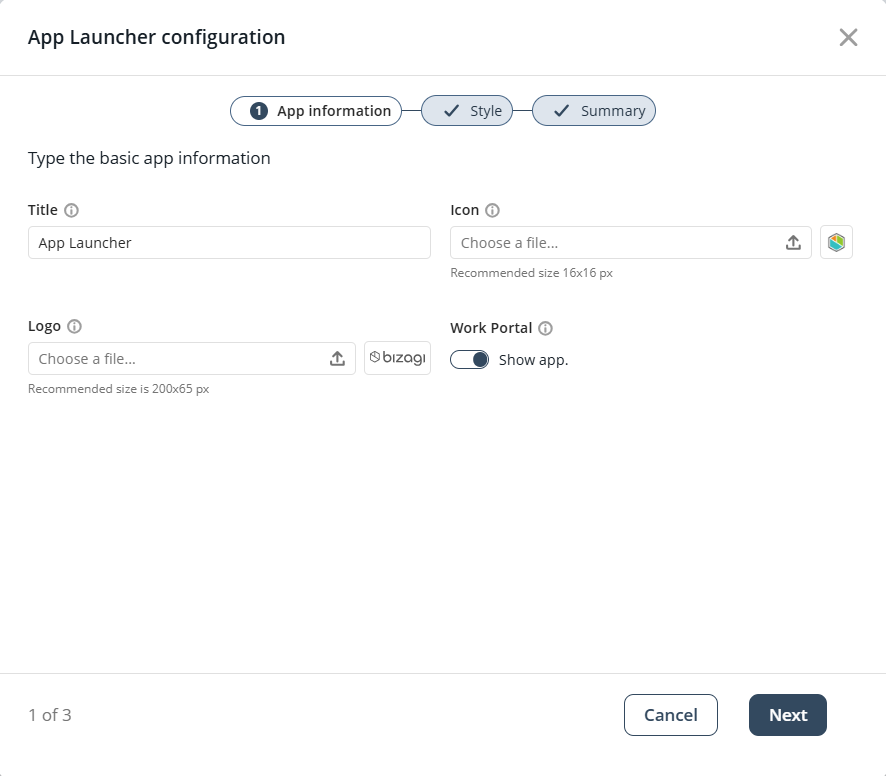

Title, logo, and icon
When using the App Designer to customize the App Launcher, you can change the title and the icon shown in the tab of your Internet browser, as well as the logo used in the App Launcher.
Default behavior
By default, the App Launcher will have the Bizagi's icon and logo, and its title will be "App Launcher".
Considerations
Field recommended sizes
To have a better experience, follow the next recommendations for each of the App Launcher customizable fields:
•Title: Use less than 50 characters.
•Icon: Use images with extensions png, jpg, svg, jpeg, or ico. Plus, we recommend using an image with 16 pixels width and 16 pixels height.
•Logo: Use images with extensions png, jpg, svg, jpeg, or ico. Plus, we recommend using an image with 200 pixels width and 65 pixels height.
To upload a new image for the icon or the logo, click the upload button.
Returning to default values
You can reestablish any field to its default value once you have changed it.
In case it is the title, leaving the text box blank will set the default value.
For the icon or logo, once you have uploaded an image, the upload button will change to the reestablish button. By clicking it, your customized image will be deleted, and instead, the App Launcher will have the default image.
Background
You can also customize the background present in the App Launcher. You can decide if you want the background to be a specific color or a selected image.
Default behavior and image customizing
By default, the App Launcher will have no option selected as follows.
Selecting the image option will set the default image. This image can be restored by clicking the Default button. If the default image is in use, click on the Replace button to use your own image as background.
Color customizing
Selecting the color option will display the color picker tool and some default colors. To access the color picker tool click on the first box from left to right as shown in the image.
Once you have defined the desired color, you can add it to My Color Library to use them in the future. To do it, click on the Add color button as follows.
Considerations
To have a better experience, follow the next recommendations for the App Launcher's background:
•Image: Use images with extensions png, jpg, svg, jpeg, or ico. Plus, we recommend using an image with 1920 pixels width and 1080 pixels height.
•Color: You can use one of the default colors or use the color picker tool to find the color you need. RGBA, HSLA, and HexA color formats are available. Use the navigation arrows to alternate between the different color formats.
•My Color Library: You can add up to eight colors in your library. Once you reach this limit, the Add color button will be disabled.

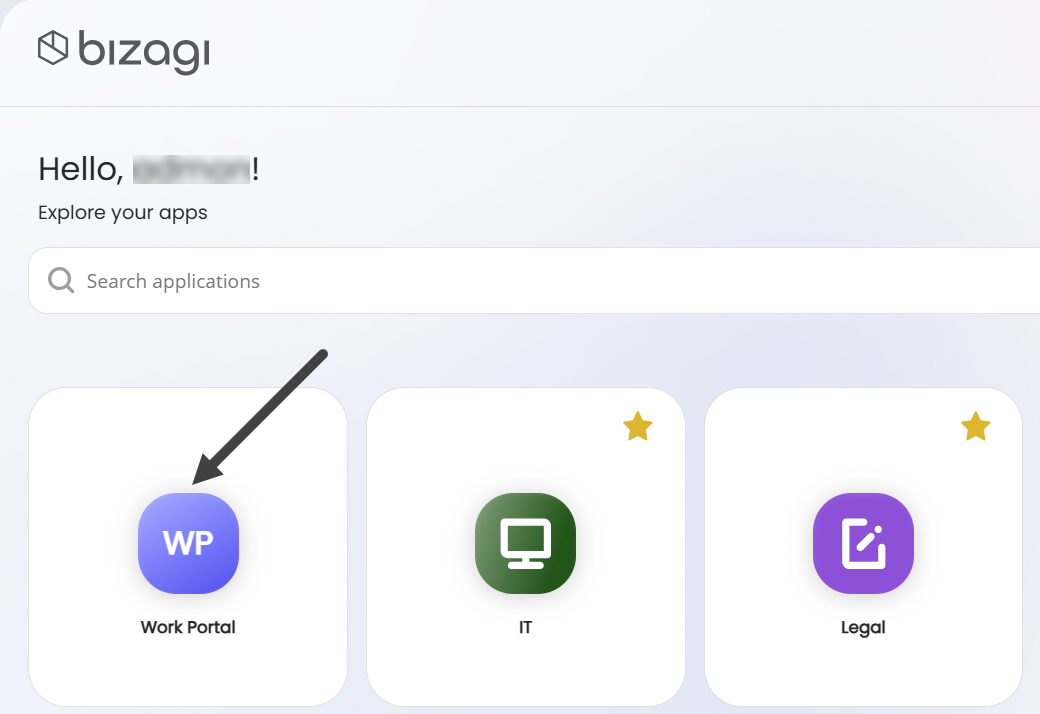

App Icon
In the App Designer home page, when creating or customizing an app it is possible to change the way the app is displayed in the App Launcher. Further information is available in the App style article.
