Overview
Support for Replicated Entities in Ask Ada enhances Bizagi Apps by enabling the use replicated entities (parameter and master-replicated entities) within Ask Ada. This allows Ask Ada to access and process replicated entities in Bizagi.
Ask Ada Replicated Entities streamlines the management of these entities within the Data Domains environment in Bizagi Studio and their integration into queries generated by Ask Ada in Bizagi Apps.
Configure Ask Ada Replicated Entities
To configure Ask Ada Replicated Entities, follow these steps:

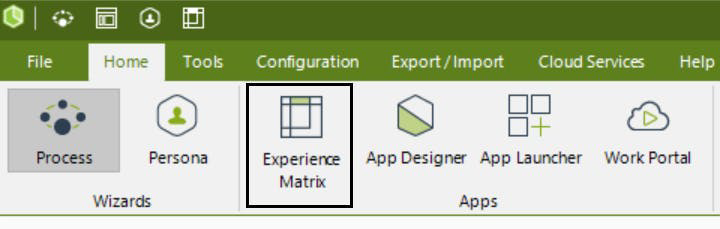

In the main menu, click Experience Matrix.

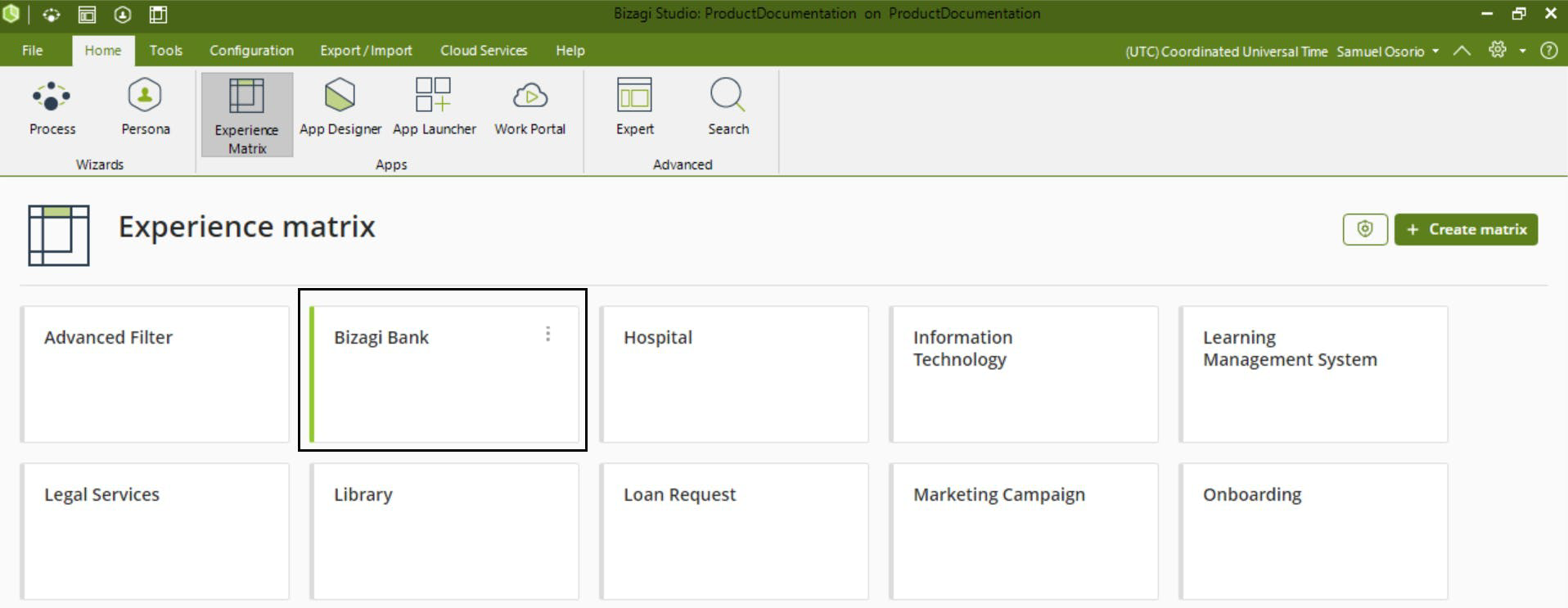

Select an Experience Matrix.

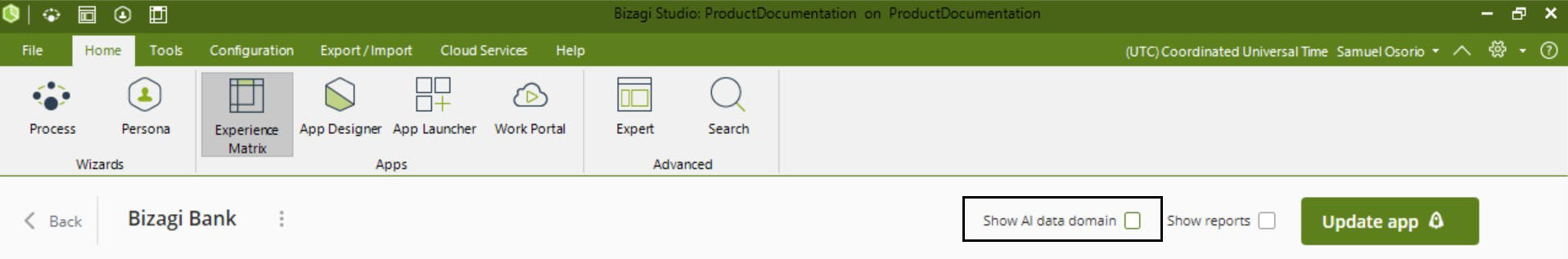

Click Show AI Data Domain.

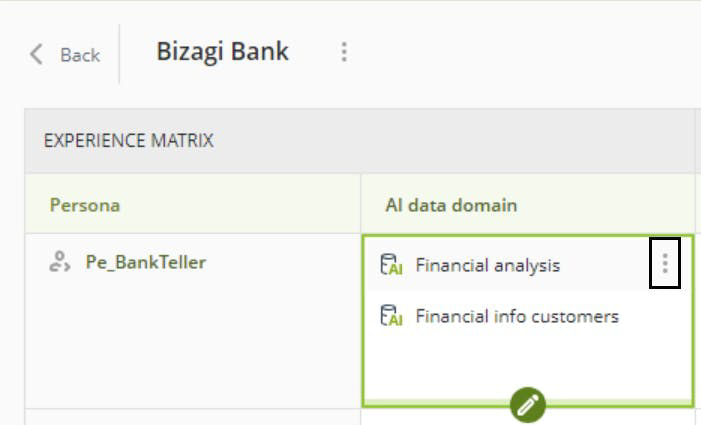

Click the three-dot button next to the domain you want to edit.

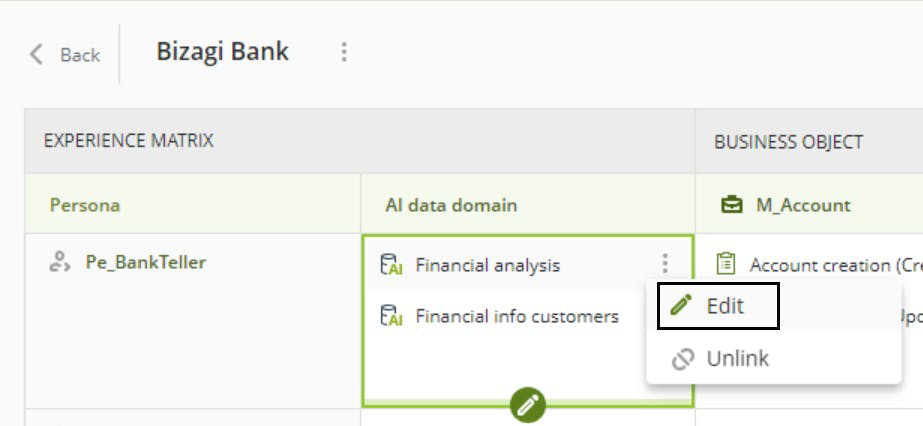

Select the Edit option.
Use Cases
Adding a Replicated Entity to a Data Domain in Bizagi Studio

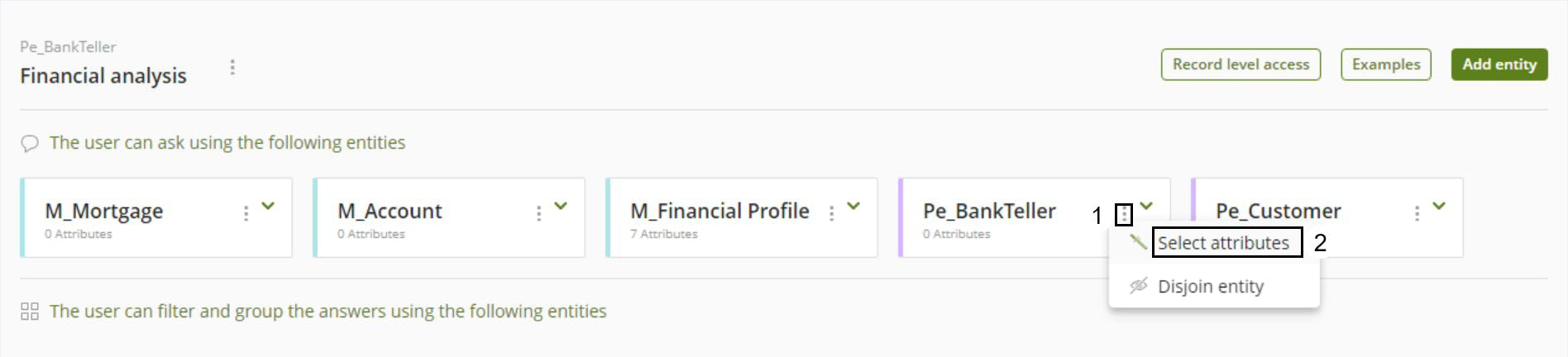

Click the three-dot button next to the master entity that references the replicated entity and Select the Select Attributes option.
Choose the relevant attribute and click OK. The entity will be listed among the visible parametric entities.
Optionally, edit additional attributes. Key attributes are selected automatically.
Adding a Replicated Master Entity

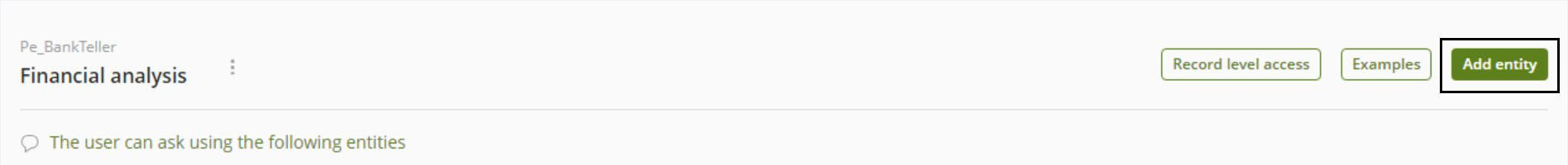

Click the Add entity button.

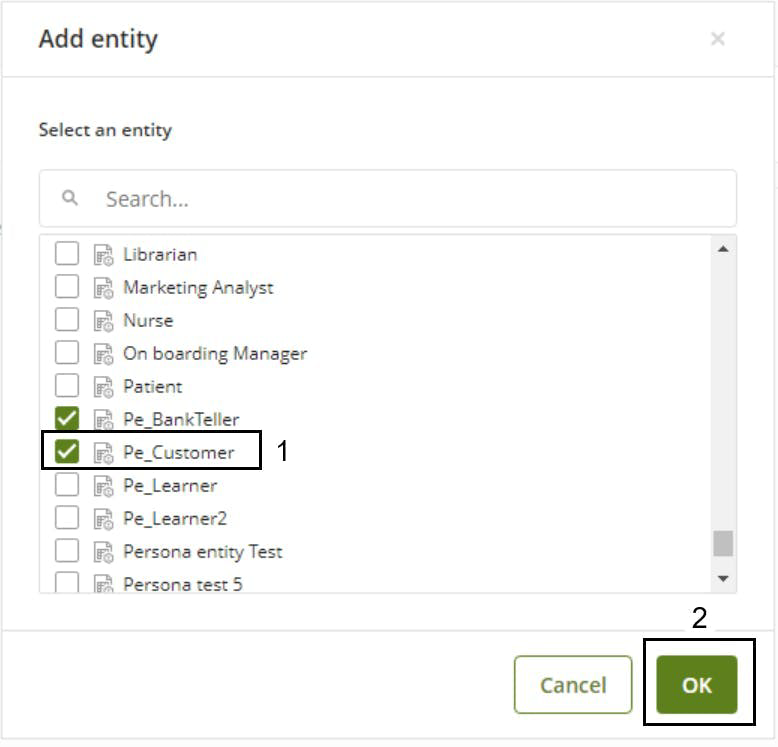

Select the entity you want to add and click OK.
Optionally, edit additional attributes. Key attributes are selected automatically.
Configuring an Implicit Filter in a Replicated Entity
For more information on how to configure an Implicit Filter refer to the Collection filters article.
Considerations
Regarding the replicated tables mentioned, please note that two types are currently enabled:
•Traditional replicated entities, which correspond to natively included parametric entities in the model.
•Entities converted to replicated, originally configured as virtualized entities but transformed through the Move to PaaS process.
It is important to highlight that virtualized entities are not considered within the scope of data domain configuration.
Last Updated 5/10/2025 4:24:09 PM
