Widgets > Hand signature

Overview

The Hand signature Widget for Bizagi is available for download at Bizagi Widget Xchange.

Through this Widget, you will be able to display a sign pad in your processes to allow end users to sign off approvals.

HandSignature_teaser

Before you start

In order to test and use this Widget, you will need:

1.Bizagi Studio previously installed.

2.This specific Widget previously installed, either as described at https://help.bizagi.com/platform/en/index.html?widget_xchange.htm, or as described at https://help.bizagi.com/platform/en/index.html?widgets_manualinst.htm.

Data model considerations

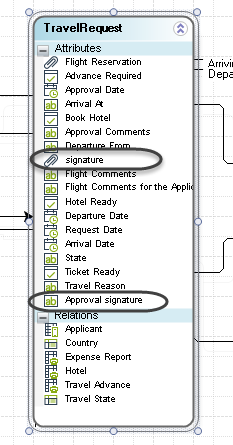

In order to use this Widget, you need in your data model:

•Use an image type attribute to store the signature image.

•Alternatively, use extended text type attribute which holds the message you want to display.

It is strongly recommended to use such type of attribute due to the fact that using a different type of attribute will not be able to fully store the bytes representing the hand signature (i.e avoid using a string attribute).

HandSignature_datamodel

Properties configuration

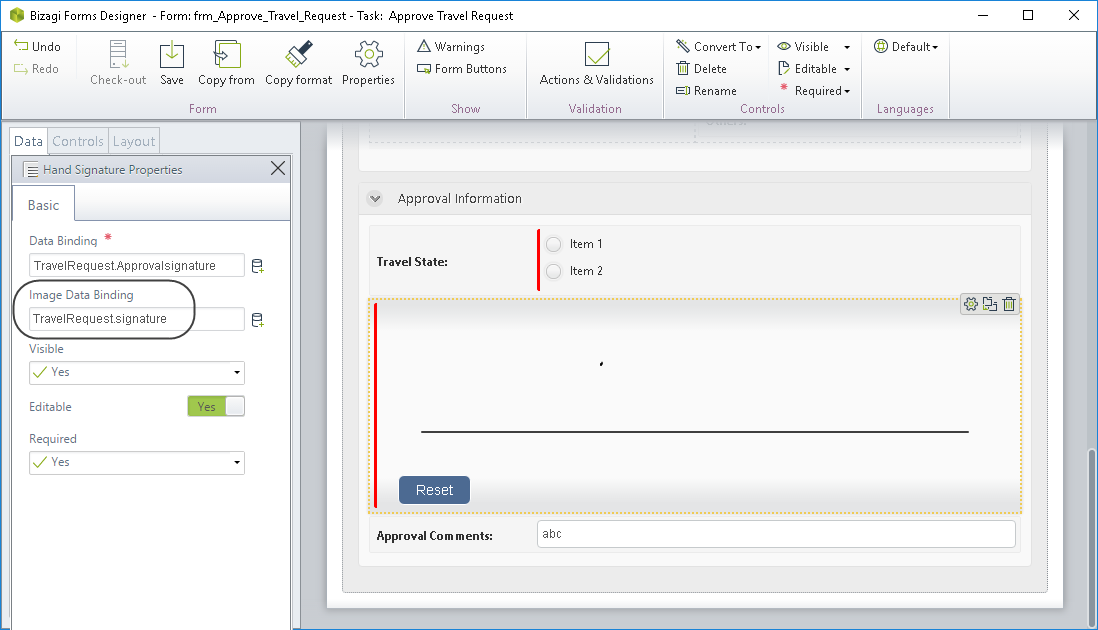

In order to configure this Widget once it is installed in your project, include it in any form and set it properties in the Forms designer, just as you would do with any other type of Bizagi control.

HandSignature_forms

Consider the following properties.

PROPERTY	POSSIBLE VALUES	DEFAULT VALUE / SUGGESTED
Data binding	A string type attribute which holds the encoded bytes representing the captured signature.	Not applicable. This property is mandatory.
Image Data Binding	An image file attribute to store the signature image. It is encouraged to use this attribute, so that you can later on map the image for further uses (e.g to a document template).	Not applicable. This property is optional.

PROPERTY

POSSIBLE VALUES

DEFAULT VALUE / SUGGESTED

Data binding

A string type attribute which holds the encoded bytes representing the captured signature.

Not applicable.

This property is mandatory.

Image Data Binding

An image file attribute to store the signature image.

It is encouraged to use this attribute, so that you can later on map the image for further uses (e.g to a document template).

Not applicable.

This property is optional.

note_pin

Notice all Bizagi controls and Widgets, enable a visible property which allows you to set if that control should be displayed in a given form or not (e.g, by using a business rule).

This Widget is designed (makes the most of its feature) when used as editable.

This Widget has a Reset button to clear the signature field when signing.

For complete documentation or more information about this Widget's possibilities (e.g, if you wish to customize and extend it), refer to the information about the implemented jQuery Plugin at https://willowsystems.github.io/jSignature/#/about/.

Last Updated 10/28/2022 9:52:30 AM
