Overview
The IEX Trading connector for Bizagi is available for download at Bizagi Connectors Xchange.
Through this connector, you will be able to connect your Bizagi processes to your IEX Trading account and services.
For more information about this connector's capabilities, visit Bizagi Connectors Xchange.
|
This Connector was developed according to the contents of the API and the information about it provided by IEX Trading. Bizagi and its subsidiaries will not provide any kind of guarantee over the content or error caused by calling the API services. Bizagi and its subsidiaries are not responsible for any loss, cost or damage consequence of the calls to IEX Trading's API. |
Before you start
To test and use this connector, you will need:
1.Bizagi Studio previously installed
2.This connector previously installed, via the Connectors Xchange as described at https://help.bizagi.com/platform/en/index.html?Connectors_Xchange.htm, or through a manual installation as described at https://help.bizagi.com/platform/en/index.html?connectors_setup.htm
3.An account at https://iexcloud.io
Configuring the connector
Obtaining your IEX Trading token
•Go to https://iexcloud.io and click on "Get Started" to create your account.

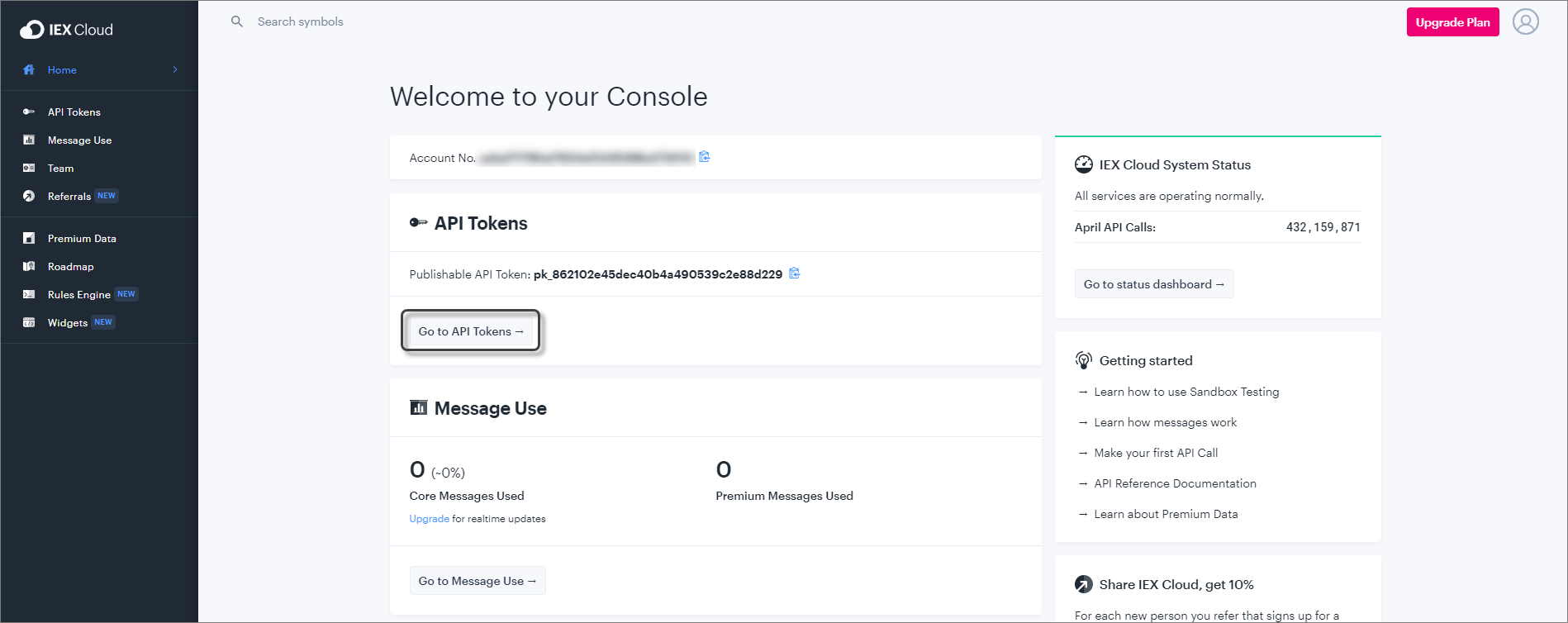

• Log in to your IEX account and click on the "Go to API Tokens" button

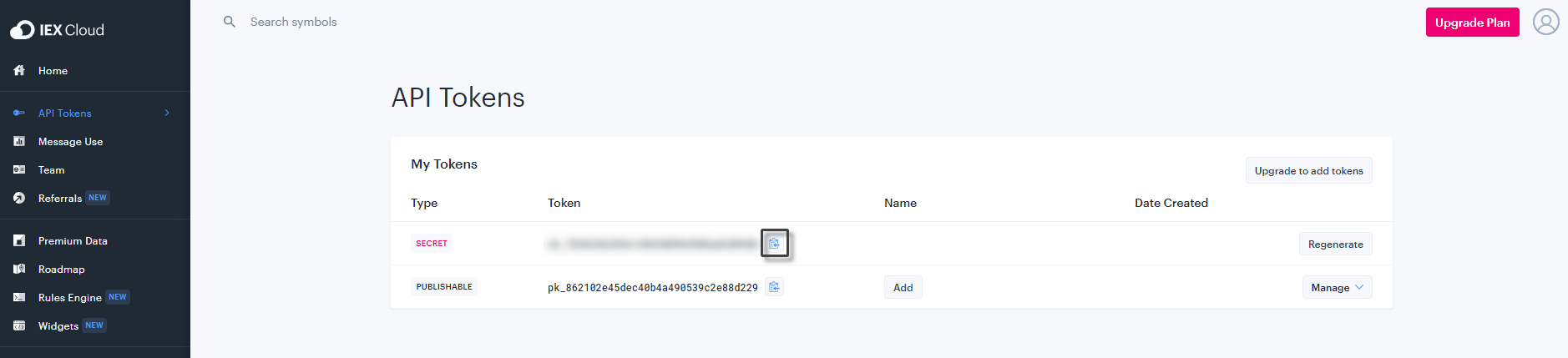

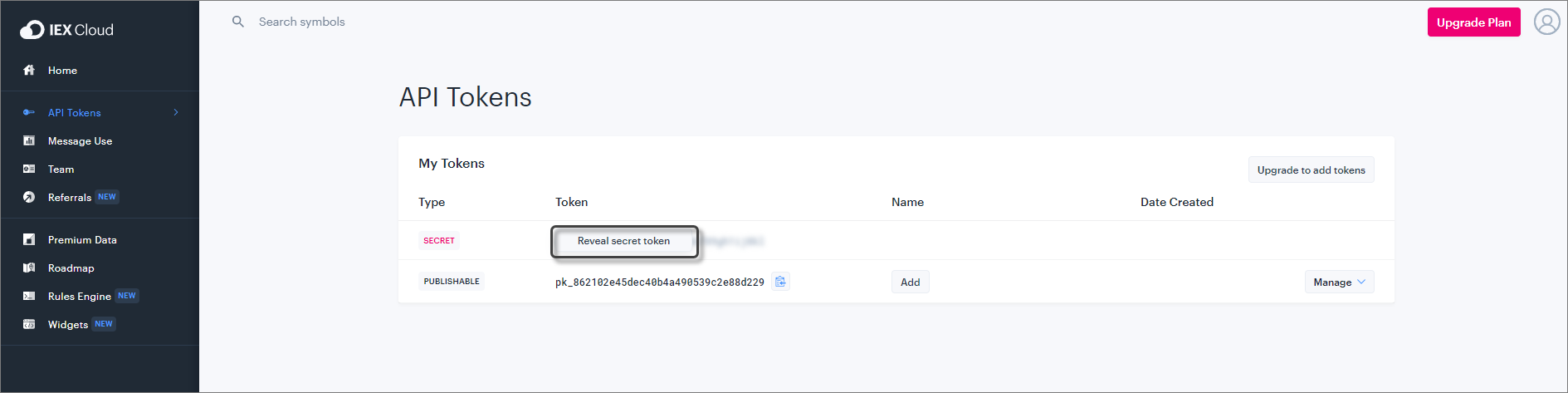

•Click on "Reveal Secret Token"
•Save the secret token to configure the connector in Bizagi
Configuring IEX Trading in Bizagi
•Install the connector by following the steps presented in https://help.bizagi.com/platform/en/index.html?connectors_setup.htm
•Configure the Authentication method of the connector as "custom" and use the token created at https://iexcloud.io as the token value
Using the connector
This connector features a set of methods which let you use IEX Trading's API services to take advantage of their capabilities.
To learn overall how/where to configure the use of a connector, refer to https://help.bizagi.com/platform/en/index.html?Connectors_Studio.htm.
|
The free IEX Trading account has a 50.000 messages limit. The following methods are not supported by the free IEX Trading Account: •Get Stock Real-Time Price •Get Market Open Close High Low Price •Get Company Open Close High Low Price •Get Company Financials |
When using the connector, keep in mind they may need input or output configurations. The following images show examples of how to map the inputs or outputs of a method.
Avaliable methods
Get Stock Companies
Get symbols and names of all the companies in IEX.
You don't need to provide any input for this action.

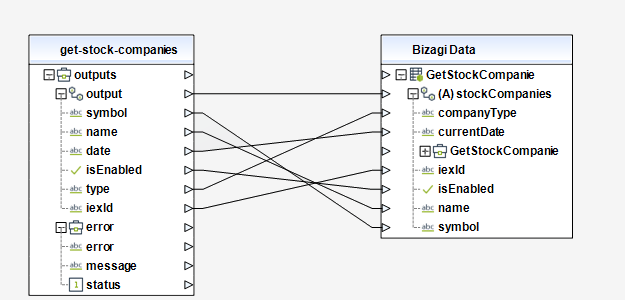

To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#reference-data
Get Real-Time Stock Price
Get the real time price of an specific company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output object to the corresponding entity in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#price
Get 5 Year Stock Graph
Return pertinent data to graph 5 years stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get 2 Year Stock Graph
Return pertinent data to graph 2 years stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get 1 Year Stock Graph
Return pertinent data to graph 1 year stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get 1 Year To Date Stock Graph
Return pertinent data to graph 1 year to date stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get 6 Month Stock Graph
Return pertinent data to graph 6 months stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get 3 Month Stock Graph
Return pertinent data to graph 3 months stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get 1 Month Stock Graph
Return pertinent data to graph 1 month stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get 1 Day Stock Graph
Return pertinent data to graph 1 day stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart

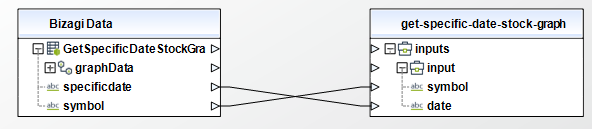

Get Specific Date Stock Graph
Return pertinent data to graph an specific date stock movement of an specific company..
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#chart
Get Compány Quote
Return a company quote.
You don't need to provide any input for this action.
To configure the outputs of this action, you can map the output object to the corresponding entity in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#quote
Get MostActive
Return the most active companies.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .|
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#list
Get Gainers
Return the most gainer companies.
You don't need to provide any input for this action.
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#list
Get Losers
Return the most loser companies.
You don't need to provide any input for this action.
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#list
Get IEXVolume
Return the companies with more IEXVolume.
You don't need to provide any input for this action.
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#list
Get IEXPercent
Return the companie swith more IEXPercent.
You don't need to provide any input for this action.
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#list
Get 5 Year Company Dividends
Returns 5 year dividends of a company.
You don't need to provide any input for this action.
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#dividends
Get 2 Year Company Dividends
Returns 2 year dividends of a company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#dividends
Get 1 Year Company Dividends
Returns 1 year dividends of a company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#dividends
Get 1 Year To Date Company Dividends
Returns 1 year to date dividends of a company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#dividends
Get 6 Month Company Dividends
Returns 6 months dividends of a company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#dividends
Get 3 Month Company Dividends
Returns 3months dividends of a company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#dividends
Get 1 Month Company Dividends
Returns 1 month dividends of a company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#dividends
Get Market Open Close High Low Price
Return the open , close, high and low prices of all the market.
You don't need to provide any input for this action.
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#ohlc
Get Company Open Close High Low Price
Return the open, close, high, and low prices of an specific company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output array to the corresponding collection in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#ohlc
Get Company Financials
Return the financial data of an specific company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output object to the corresponding entity in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#financials
Get Company Earnings
Return the earnings data of an specific company.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output object to the corresponding entity in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#earnings
Get Company Information
.
To configure its inputs, take into account the following descriptions:
•symbol (Required): .
To configure the outputs of this action, you can map the output object to the corresponding entity in Bizagi and make sure you map the attributes of the entity appropriately.
For more information about this method's use, refer to IEX Trading 's official documentation at https//iextrading.com/developer/docs/#company
Last Updated 10/27/2022 11:02:37 AM
