Overview
The Historical chart Widget for Bizagi is available for download at Bizagi Widget Xchange.
Through this Widget, you will be able to display charts anywhere in your process forms that present given values over time (i.e a timeline).
The Historical chart resembles the line chart, however it also provides a summary view of the behavior over time at the bottom part of the chart, and it will consider date attributes in your data model instead of string attributes.
Before you start
In order to test and use this Widget, you will need:
1.Bizagi Studio previously installed.
2.This specific Widget previously installed, either as described at https://help.bizagi.com/platform/en/index.html?widget_xchange.htm, or as described at https://help.bizagi.com/platform/en/index.html?widgets_manualinst.htm.
Data model considerations
In order to use this Widget, you need in your data model a Collection type attribute which holds the multiple paired values to display.
Paired values are graphed in a chart (x, y coordinates and axis).
Such collection should include these attributes:
•One currency type attribute, having the value of each recorded information.
•One date type attribute, ideally where there is a unique record for a given date, so that each record belongs to that given point in time.
The above means that ideally, logical records should not be repeated within the collection.

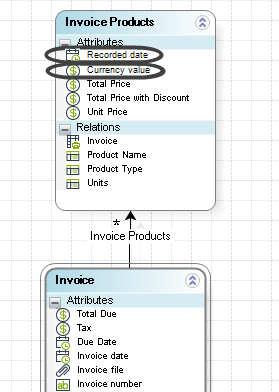

The sample image below shows the use of a Invoice products collection, while relying on the Recorded date and Currency value attributes.
Properties configuration

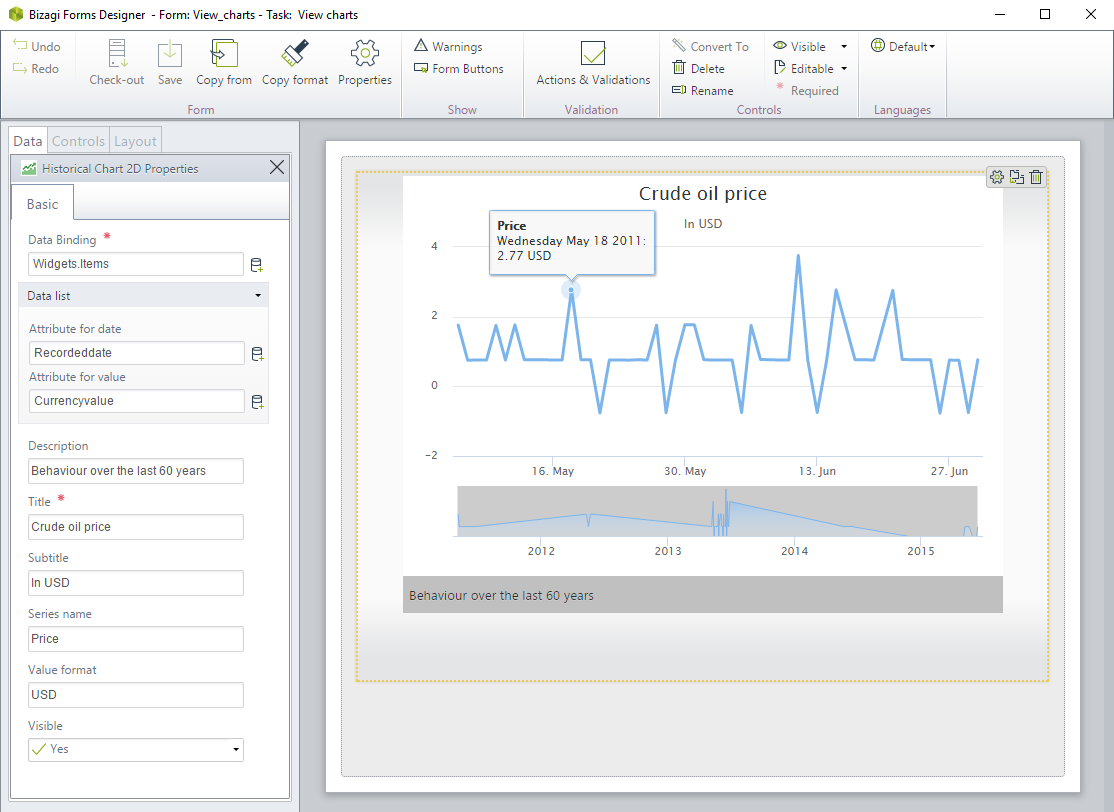

In order to configure this Widget once it is installed in your project, include it in any form and set it properties in the Forms designer, just as you would do with any other type of Bizagi control.
Consider the following properties.
PROPERTY / SUB-PROPERTY |
POSSIBLE VALUES |
DEFAULT VALUE / SUGGESTED |
|---|---|---|
Data binding |
A collection type attribute which holds the multiple records displayed by the chart. |
Not applicable. This property is mandatory. |
Attribute for date (sub-property of data binding) |
A date providing a way to identify uniquely each of the records. |
Not applicable. This property is mandatory. |
Attribute for value (sub-property of data binding) |
A numeric value having the amount registered per date. |
Not applicable. This property is mandatory. |
Title |
A descriptive information for the chart main header. |
(none) |
Subtitle |
A complementary bit of information for the header. |
(none) |
Description |
An optional caption for an elaborated clarification. |
(none) |
Series name |
A title for the mouse hover action that best describes the records of the collection. |
(none) |
Value format |
The formatting employed to display money values for a given currency (e.g, USD).. |
USD (99.99) |
|
Notice all Bizagi controls and Widgets, enable a visible property which allows you to set if that control should be displayed in a given form or not (e.g, by using a business rule).
This Widget is designed as read-only. |
