Widgets > Screenshot

Overview

The Screenshot Widget for Bizagi is available for download at Bizagi Widget Xchange.

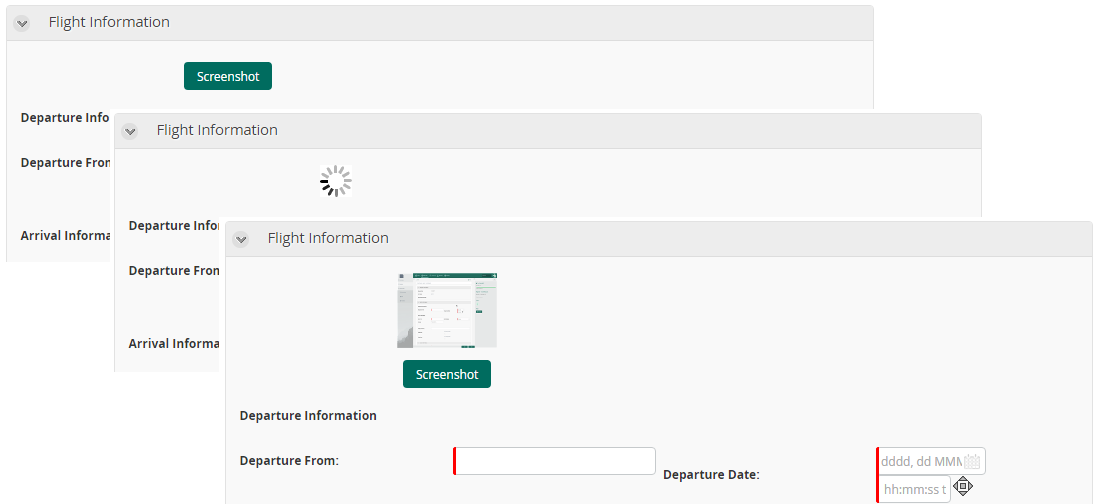

Through this Widget, you will be able to automatically take an screen shot of the screen and upload directly to an image attribute. The screen shot takes the currently opened web page, which in this case will be Bizagi Work Portal.

screenshot_1

Before you start

In order to test and use this Widget, you will need:

1.Bizagi Studio previously installed.

2.This specific Widget previously installed, either as described at https://help.bizagi.com/platform/en/index.html?widget_xchange.htm, or as described at https://help.bizagi.com/platform/en/index.html?widgets_manualinst.htm.

Data model considerations

In order to use this Widget, you need in your data model:

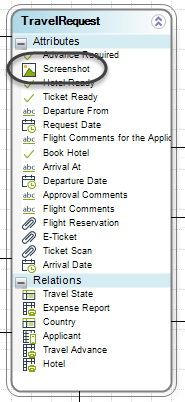

•An image type attribute which stores the image file.

screenshot_2

Properties configuration

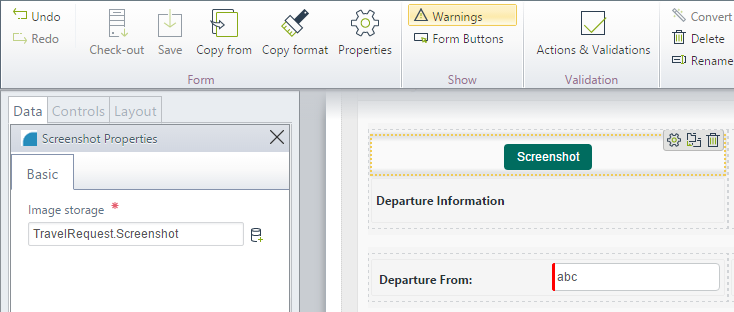

In order to configure this Widget once it is installed in your project, include it in any form and set it properties in the Forms designer, just as you would do with any other type of Bizagi control.

screenshot_3

Consider the following properties.

PROPERTY	POSSIBLE VALUES	DEFAULT VALUE / SUGGESTED
Image storage	An image attribute to store the image	(None), the image will be saved in this attribute.

note_pin

Notice all Bizagi controls and Widgets, enable a visible property which allows you to set if that control should be displayed in a given form or not (e.g, by using a business rule).

If the Screenshot button is pressed again, any stored image in this attribute will be replaced.

For complete documentation or more information about this Widget's possibilities (e.g, if you wish to customize and extend it), refer to the information about the implemented jQuery Plugin at https://html2canvas.hertzen.com/examples.html

Last Updated 10/28/2022 10:02:33 AM
